Tapping Accessories

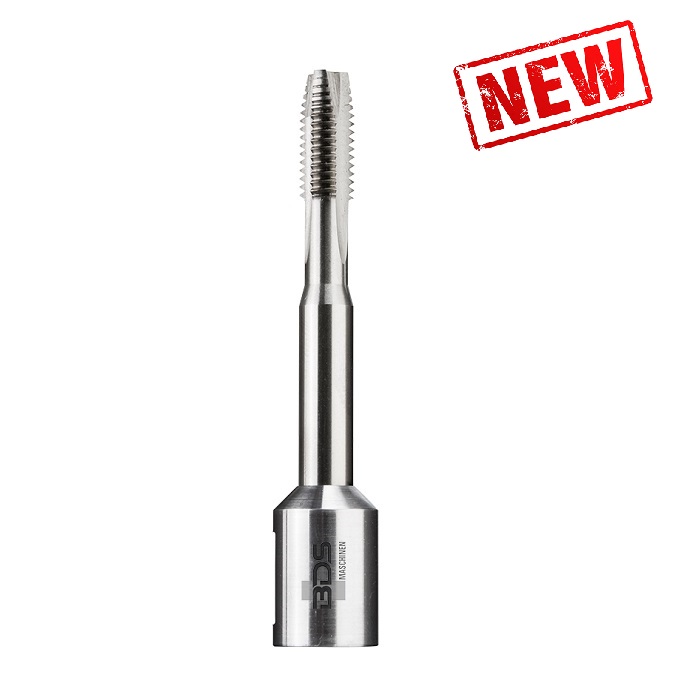

The New Machine Taps From BDS Are Manufactured With Weldon Shank Which Makes These Taps Ideal To Use With Magnetic Drilling Tapping Machine Without Any Extra Tapping Adaptor Or Tapping Inserts. You Can Use These Taps On Your Magnetic Drilling Machines By Directly Fitting It Into The Arbor, Same As You Use An Annular Cutter Of A Magnetic Drill Machine. No More Need For An Extra Adaptor. The BDS Thread Cutting Tools Are Easy And Economical In Price.

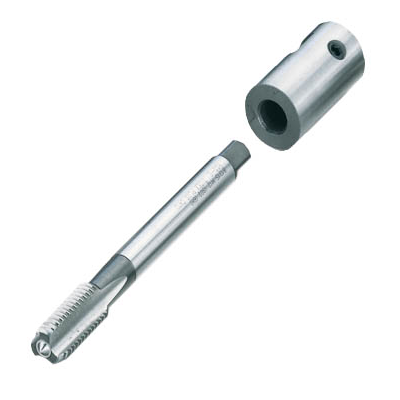

Tap adapters – getting started economically! By means of the adapter, the taps are taken up directly into the 19 mm or 32 mm Weldon system. Suitable for through-hole threads only! The Economical Price Machine Tap Adapter Are Simple To Use Tap Adapter For Taps With Straight Shank. As Per The Size Of The Your Tap, Select The Proper The Adapter, Insert The Tap Into The Adapter And Fix The Tap By Tightening The Screws With An Allen Key. Insert The Tap In The Drill Arbour Of The Machine. The Tap Adapters Are With Weldon Shank."

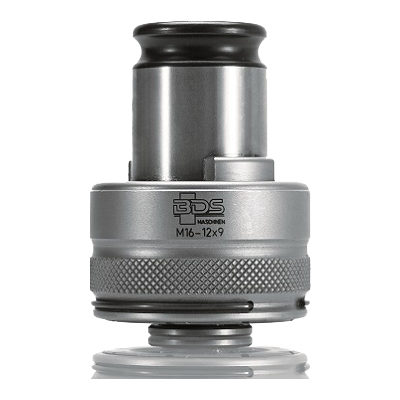

The GSS Quick Change Tapping Insert With Friction Clutch Is Used Blind Hole Tapping As Well As For Through Hole Tapping. The GSS Blind Hole Tapping Collets Is Equipped With A Friction Clutch Which Once The Tap Head Reached The Bottom Of The Blind Hole, The Friction Clutch Of The Quick Change Insert Will Get Activated And The Tap Will Stop To Penetrate More. Thus, The Tap Does Not Break. The GSS Collets For Bling Hole Tapping Are Used In Combination With GSW Quick Change Drill Chuck. The GSS Quick Change Inserts For Tapping Are Available From M5 To M24 Threading Size. For More Information Please Download The Data Sheet.

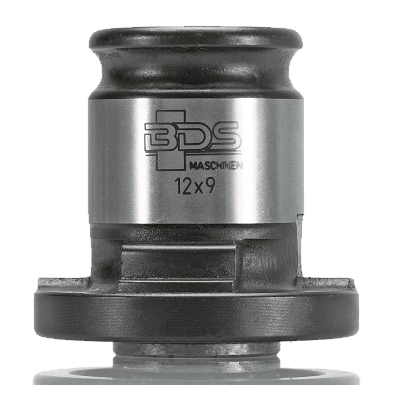

The GSE Quick Change Tapping Inserts Or Also Called As The Tapping Collets Are Used For Tapping Through Holes Only. The GSE Tapping Collects Are Available For Thread Cutting Size From M3 To M30. These Premium Quick Change Inserts Are Used In Combination With GSW Quick Change Drill Chuck For Tapping. The GSE Quick Change Tapping Collets Must Be Used With Machine Taps. The Ideal Condition To Use The GSE Tapping Collets Is With A Magnetic Drilling Machine With Reversible Motor.

The GSW Tapping Attachment Is Quick Change Type And Is Also Called As Quick-Change Drill Chuck For Tapping. The GSW Tapping Attachment Is Ideal For Use With Magnetic Drilling Machines With A Reversible Motor Which Can Rotate Clock And Anti-Clockwise Direction. Moreover, The GSW Tapping Attachment Comes With Morse Taper In An Option For MT 2, 3 Or 4. The GSW Tapping Attachment Is Used With GSE Quick Change Tapping Insert For Through-Hole Tapping Only Or With GSS Quick-Change Insert ''With Friction Clutch'' For Blind Hole & Through Hole Tapping. The GSW Tapping Attachment Comes With Different Sizes Depending On The Size Of Tap To Be Made. For More Information, We Recommend You To Download The Data Sheet.
